Highlights
Frame.svg
CPU
Up to 1.8GHz Quad Cortex™-A53 NXP i.MX 8M Plus
Frame_1.svg
High Speed Interfaces
2x USB3.0, 2x GbE, PCIe, HDMI
Dimensions icon
Dimensions
Only 55 x 30 mm
Frame_4.svg
Temperature range
-40 to 85°C
Group-1000002059.svg
Multimedia
1080p60 H265/H264 Encode/Decode, AI/ML acceleration, HD 2D/3D GPU
calendar.svg
Product Longevity
2036
Group-1000002196.svg
Pin2pin Family
DART Pin2Pin family
Mehr erfahren
System on Module support
Support
Wir unterstützen Sie bei jedem Schritt – vom Konzept bis zur Markteinführung und darüber hinaus. Kostenloser und schneller Support von den Variscite-F&E-Experten.
Spezifikationen
CPU Name

NXP i.MX 8M Plus

CPU Type

Cortex™-A53

CPU Cores

4 Cores

CPU Clock (Max)

Up to 1.8GHz

Real-time co-processor

800MHz Cortex-M7

DSP

HiFi4 DSP

Integer performance (DMIPS)

Up to 16,560

RAM

1 – 8 GB LPDDR4

eMMC

8 – 128 GB

Multimedia
2D/3D Graphics Acceleration

GC7000UL/ GC520L

Video Encode / Decode

1080p60 H.265/ H.264/ VP9/ VP8 Decode, 1080p60 H.265/ H.264 Encode

Camera Interfaces

2x MIPI CSI2

AI/ML

AI/ML NPU acceleration 2.3 TOPS

Image Signal Processor (ISP)

Yes

Display
HDMI

V2.0a up to 4Kp30

DSI

MIPI-DSI 1920×1080 24-bit

LVDS

Dual 1920x1080 24-bit

Touch controller

Capacitive

Audio
Headphone driver

Yes

Microphone

Digital, Analog (stereo)

Digital audio serial interface

6 x I2S(SAI), S/PDIF RX TX, PDM 8CH

Line In/Out

Yes

Connectivity
SD / MMC

x1

USB Host / Device

USB 3.0/2.0 2x OTG

UART

x4, up to 5 Mbps

I2C

x5

SPI

x3

CAN Bus

x2 CAN/CAN-FD (Flexible Data-Rate)

RTC

On carrier

JTAG

x1

QSPI

X1

PCI-Express

Gen 3.0

Networking
Ethernet

2x 10/100/1000 Mbps (1x Ethernet with TSN support)

Wi-Fi

Rev.1: Certified Wi-Fi 5 dual-band 802.11 ac/a/b/g/n
Rev.2: Certified Wi-Fi 6 dual-band 802.11 ax/ac/a/b/g/n with optional 802.15.4

Bluetooth

Rev.1: BT/BLE 5.2
Rev.2: BT/BLE 5.4

Linux

Yocto, Debian, Boot2Qt

Android

Yes

FreeRTOS

Yes

Mechanical Specifications
Dimensions (W x L)

55.0 x 30.0 mm

Electronic Specifications
Supply voltage

3.4V- 5V

Digital I/O voltage

3.3V/1.8V

Environmental Specifications
Commercial operating temperature

0 to 70°C

Extended operating temperature

-25 to 85°C

Industrial operating temperature

-40 to 85°C

Storage temperature

-40 to 85°C

Storage humidity

5% to 95%

עעע
דדד

ללל

DART-MX8MP[x]_V2_[xxxx]C_[xxxx]R_[xx]G_[AC]_[EC]_[WBD/WBE]_[DSCM]_[X]T
MX8MP[x]:

i.MX 8M-Plus cores: Quad : [Q]

[xxxx]C:

CPU clock speed: 1800MHz: 1800C (CT grade), 1600MHz: 1600C (ET/IT grade)

[xxxx]R:

LP-DDR4: 1024 MB: 1024R, 2048 MB: 2048R, 4096 MB: 4096R, 8192 MB: 8192R

[xx]G:

eMMC: 8 GB : 8G, 16 GB : 16G, 32 GB : 32G, 64 GB : 64G, 128 GB : 128G

[AC]:

Audio Codec

[EC]:

GbE PHY

[WB[D]]

WBD: Built-in certified dual band Wi-Fi 802.11 ax/ac/a/b/g/n + BT/BLE 5.4
WBE: Built-in certified dual band Wi-Fi 802.11 ax/ac/a/b/g/n + BT/BLE 5.4 + 802.15.4

[DSCM]

Default: Dual LVDS (#0 and #1) plus DSI
DSCM: LVDS #0, DSI in pin2pin compatible mode instead of LVDS #1

[x]T:

C : 0 to 70°C, E: -25 to 85°C, I : -40 to 85°C

DART-MX8MP[x]_[xxxx]C_[xxxx]R_[xx]G_[AC]_[EC]_[WB[D]]_[DSCM]_[X]T
MX8MP[x]:

i.MX 8M-Plus cores: Quad : [Q]

[xxxx]C:

CPU clock speed: 1800MHz: 1800C (CT grade), 1600MHz: 1600C (ET/IT grade)

[xxxx]R:

LP-DDR4: 1024 MB: 1024R, 2048 MB: 2048R, 4096 MB: 4096R, 8192 MB: 8192R

[xx]G:

eMMC: 8 GB : 8G, 16 GB : 16G, 32 GB : 32G, 64 GB : 64G, 128 GB : 128G

[AC]:

Audio Codec

[EC]:

GbE PHY

[WB[D]]

WB: Built-in certified single band Wi-Fi 802.11 b/g/n + Bluetooth 5.1/BLE
WBD: Built-in certified Wi-Fi 802.11 ac/a/b/g/n + Bluetooth 5.2/BLE

[DSCM]

Default: Dual LVDS (#0 and #1) plus DSI
DSCM: LVDS #0, DSI in pin2pin compatible mode instead of LVDS #1

[x]T:

C : 0 to 70°C, E: -25 to 85°C, I : -40 to 85°C

Note: All options in [brackets] are optional add-ons that can be either removed or selected from a list of options

Unsere langjährigen Partnerschaften

Unsere engen Partnerschaften mit führenden Technologieanbietern bieten unseren Kunden frühzeitigen Zugriff auf die neuesten fortschrittlichen Lösungen und stellen sicher, dass Ihre Projekte auf einer soliden und zukunftssicheren Grundlage beginnen.

Fordern Sie Ihr individuelles Angebot an

Füllen Sie die folgenden Angaben aus und einer unserer Vertreter wird sich in Kürze mit Ihnen in Verbindung setzen.






    System on Module Platform

    Erwartete Menge


    Thank you for submitting your Quote
    Want to start your evaluation ASAP?
    Order a Kit

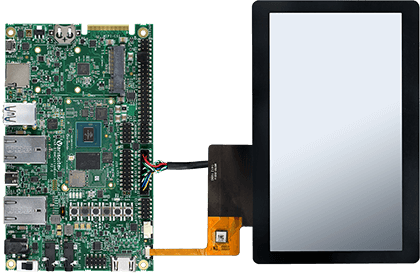

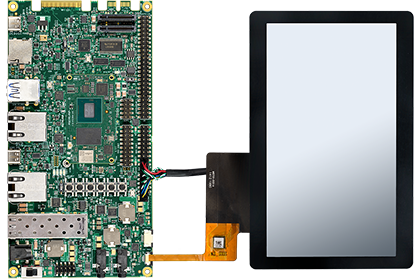

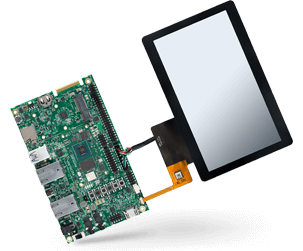

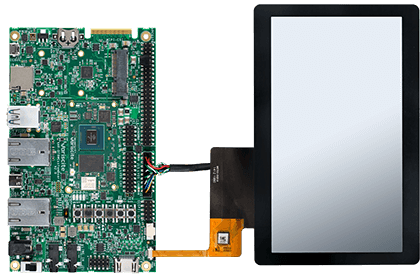

    DART-MX8M-PLUS Evaluation Kits
