Spezifikationen

Starter Kit

Development Kit
Display
7" WVGA
Touch Panel
Capacitive
Micro-USB Debug Cable
Ethernet Cable
5V Power Supply
Antenna
Heat Sink
Boot/Rescue SD Cards
Carrier Board Design Package
Optional Camera Module
Part Number
VAR-STK-DT8M-PLUS
VAR-DVK-DT8M-PLUS

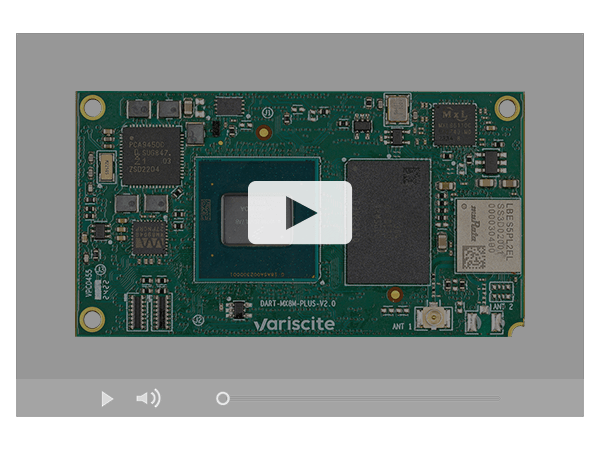

System on Module
CPU Name
NXP i.MX8M Plus
CPU Type
Cortex™-A53
CPU Cores
4
CPU Clock
1.8 GHz
RAM
4 GB LPDDR4
eMMC
16 GB
AI/ML
AI/ML NPU acceleration 2.3 TOPS
Ethernet
10/100/1000 Mbps
Wi-Fi
Certified Wi-Fi 6 dual-band 802.11ax/ac/a/b/g/n
Bluetooth
5.4 / BLE
HDMI
V2.0a up to 4Kp30
LVDS
18-bit / 24-bit
Audio codec
Yes
OS support
Linux / Android
Temperature
0 to 70°C
Part number
DART-MX8MPQ_V2_1800C_4096R_16G_AC_EC_WBD_CT

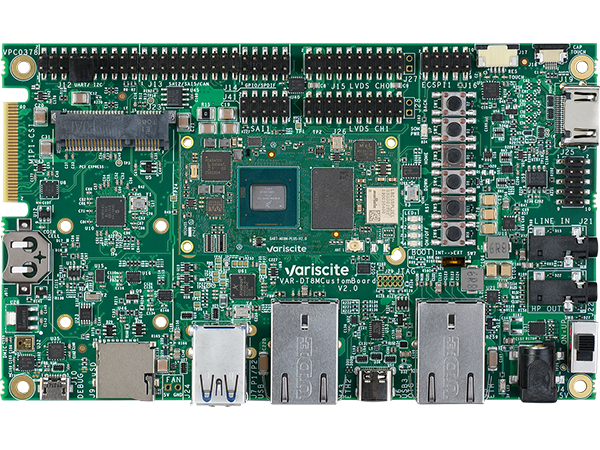

VAR-DT8MCustomBoard
Carrier Board
B2B socket
Supporting the DART-MX8M-PLUS
HDMI
2.0a
LVDS
18-bit / 24-bit
DP
1.3
Backlight Driver
PWM Control
Resistive touch panel
4-wire touch panel (4-pin FFC/FPC)
Capacitive touch panel
Capacitive touch panel (6-pin FFC/FPC)
Headphone
3.5 mm connector
Line - in
3.5 mm connector
Digital microphone
on-board
PCI-Express
mini-PCIe connector
SD-CARD
SD Card Socket
CAN Bus
CAN/CAN-FD (Flexible Data-Rate)
Ethernet
2x 10/100/1000 Mbps, RJ45
VAR-[STK / DVK]-DT8M-PLUS_V2_[x]O
STK/DVK
STK: Starter kit
DVK: Development kit
[x]O
L: Linux, A: Android
