Spezifikationen

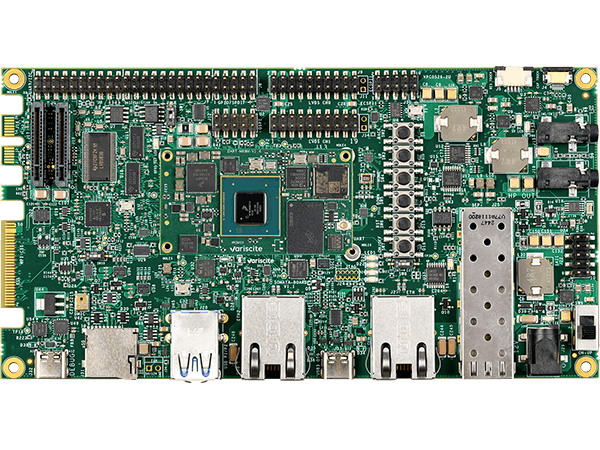

Starter Kit

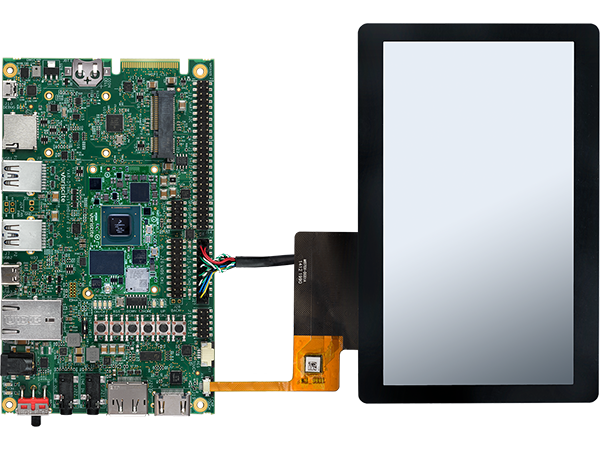

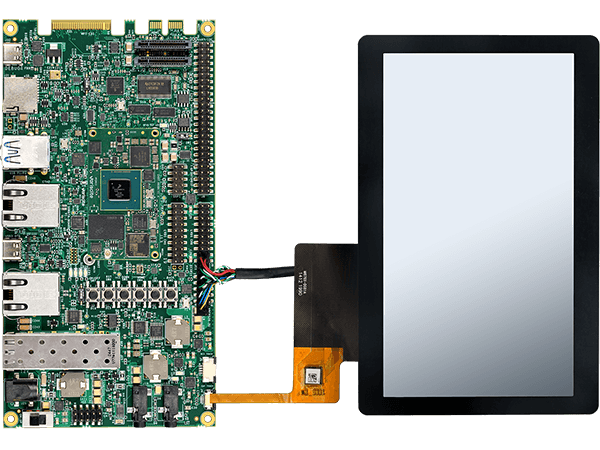

Development Kit
Included SOM
Included Carrier Board
Display

7" WVGA

Touch Panel

Capacitive

Micro-USB Debug Cable
Ethernet Cable
12V Power Supply
Heat Sink
Boot/Rescue SD Cards
Carrier Board Design Package
Optional Camera Module
Part number

VAR-STK-DT8M

VAR-DVK-DT8M

System on Module
CPU Name
CPU Type

Cortex™-A53

CPU Cores

4

CPU Clock

1.5 GHz

RAM

4 GB LPDDR4

eMMC

16 GB

Ethernet

10/100/1000 Mbps Ethernet

LVDS

18-bit / 24-bit

Audio codec

Yes

OS support

Linux / Android

Temperature

0 to 70°C

Part number

DART-MX8MQ_1500C_4096R_16G_AC_EC_LD_CT

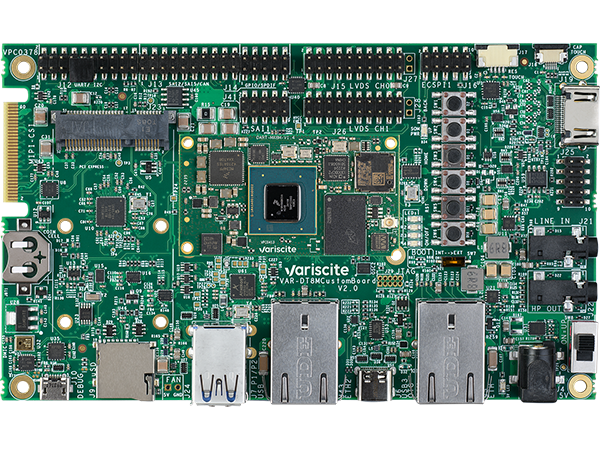

Sonata-Board
Carrier Board
B2B socket

Supporting the DART-MX8M

Headphone

3.5 mm connector

Line - in

3.5 mm connector

Digital microphone

on-board

PCI-Express

Dual M.2 M-Key vertical connectors

SD-CARD

SD Card Socket

CAN Bus

2x 10/100/1000 Mbps, RJ45

Ethernet

2x 10/100/1000 Mbps, RJ45

VAR-[DVK / STK]-DT8M_3G_[x]O
STK

Starter kit

DVK

Development kit

[x]O

L: Linux, A: Android

Bestellen Sie das Produkt online

Bereiten Sie sich auf die Cyberresilienz-Verordnung vor?

Erfahren Sie, wie diese Plattform die Planung zur Cyberresilienz-Verordnung unterstützt

CRA products
Support
Wir unterstützen Sie bei jedem Schritt – vom Konzept bis zur Markteinführung und darüber hinaus. Kostenloser und schneller Support von den Variscite-F&E-Experten.

Unsere langjährigen Partnerschaften

Unsere engen Partnerschaften mit führenden Technologieanbietern bieten unseren Kunden frühzeitigen Zugriff auf die neuesten fortschrittlichen Lösungen und stellen sicher, dass Ihre Projekte auf einer soliden und zukunftssicheren Grundlage beginnen.

Why Variscite?

Qualität
Eigene Herstellung mit umfassender Qualitätskontrolle – zertifiziert nach den medizinischen Standards ISO 9001 und ISO 13485.
Pin2Pin
Unsere Pin2Pin-Produktfamilien maximieren die Skalierbarkeit und ermöglichen eine nahtlose Migration auf zukünftige Technologien ohne Neugestaltung der Trägerplatine.
Langlebigkeit
15 Jahre garantierte Hardware-Verfügbarkeit, unterstützt durch kontinuierliche Software-Updates und Support.
Anpassbarkeit
Konfigurieren Sie Ihr System mit Präzision und Flexibilität – wählen Sie nur die Funktionen, die Sie benötigen, und senken Sie die Kosten.

Fordern Sie Ihr individuelles Angebot an

Füllen Sie die folgenden Angaben aus und einer unserer Vertreter wird sich in Kürze mit Ihnen in Verbindung setzen.






    System on Module Platform

    Erwartete Menge


    Vielen Dank für Ihre Kontaktaufnahme
    Unser Vertreter wird sich in Kürze mit Ihnen in Verbindung setzen
    Weitere Produkte ansehen
    Back
    Updates
    Software releases
    Variscite monthly software updates - October 2026
    Stay current with software updates – Keep your Variscite SoMs performing at their best with our latest software releases.

    Newsroom
    Variscite and SecEdge: firmware-based TPM solution for i.MX SoMs
    Adding TPM 2.0 to an embedded product usually starts with a hardware question: where does the security chip go? On Variscite’s i.MX-based modules, there is now another answer. Variscite and SecEdge are bringing SecEdge’s TPM 2.0 firmware, anchored in the processor’s own security hardware, to Variscite’s i.MX System on Module portfolio.
    Blog

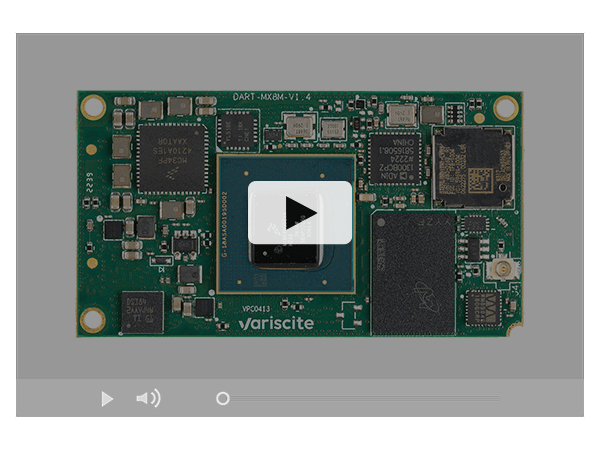

    DART-MX8M
